Description:
This type of CMU 100 device is RS485 to 10/100Base-Tx converter. Data is converted from RS485 to 10/100Base-Tx and vice versa.
Converter has one half duplex, 2 wires RS485 interface that can be connected to the RS485 bus with up to 32 devices. Three types of RS485 interfaces, allow different data rate. Device data transfer rate depends on chosen RS485 interface. Second interface is 10/100Base-Tx with RJ45 connector. Device allows data speed up to 115,2 kbits/s.
Converter has LED indication for power and LED indication for Rx and Tx lines for each interface.
Three types of power supplies allow connection to all common station batteries: 24 V DC, 48 V-60 V DC, 110 V-220 V DC voltage. Additionaly it can be also connected to standard 230 V AC voltage.
Housing is made from Aluminum and is intended for standard DIN35 rail.
This device is intended for use in cubicles and cabinets in all kinds of power production, transmission and distribution stations. It requires no maintenace. All normaly used connectors, switches and light indicators are accessed at the front side of the device.
Features:
- Integrated power supply, so no additional power supply adaptor needed
- Wide power supply input voltage for standard station batteries supply 110 V-220 V DC, 230 V AC or 48 V-60 V DC or 24 VDC
- Enclosure size 40 mm(W) x 105 mm(H) x 111 mm(D)
- Aluminum housing, standard DIN 35 rail mount
- Communication activity LED indication on each port
- Communication speed up to 115,2 kbit/s
- Galvanic isolation on RS485 port

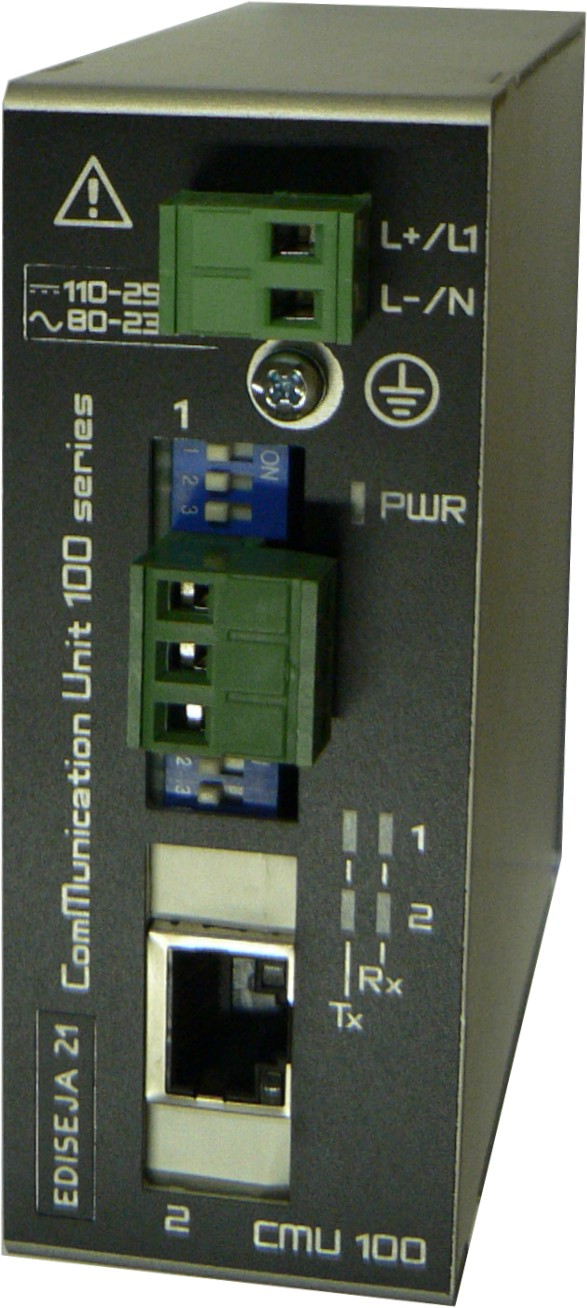

Overview:

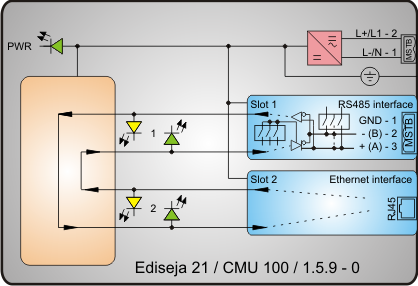

Schematic:

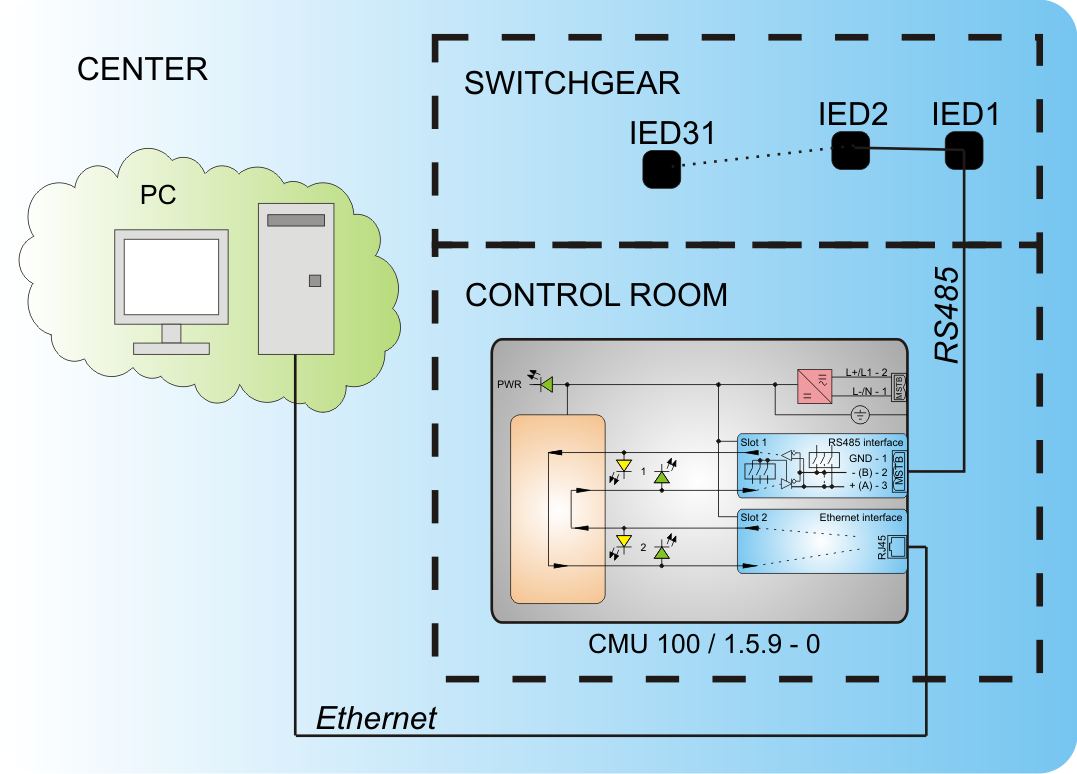

Typical application:
Model types:
Port 1 |
Port 2 |
110 V-250 V DC, 230 V AC |
48 V-60 V DC |
24 V DC |
|
RS485 |
19,2-115,2 kbit/s |
10/100Base-Tx |
CMU 100 / 1.5.9 - 0 |
CMU 100 / 7.5.9 - 0 |
CMU 100 / 3.5.9 - 0 |
4,8-38,4 kbit/s |
CMU 100 / 1.M.9 - 0 |
CMU 100 / 7.M.9 - 0 |
CMU 100 / 3.M.9 - 0 |
||
300-2400 bit/s |
CMU 100 / 1.L.9 - 0 |
CMU 100 / 7.L.9 - 0 |
CMU 100 / 3.L.9 - 0 |
||
