4xDIs, 4xDOs acquisition unit - SAU 100 series

Photos: SAU SAU

Description:

SAU 100 is simple acquisition unit with 4 digital inputs, 4 digital outputs, wide range power supply and IEC 60870-5-103 protocol.

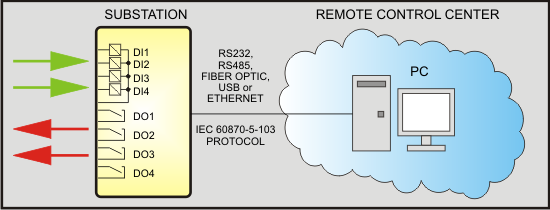

Typical application:

Features:

- Wide Supply Voltage (DC 88 - 350 V & AC 70 - 264 V or DC 38 - 72 V & AC 30 - 50 V)

- Enclosure size 70 mm(W) x 105 mm(H) x 111 mm(D)

- Standard DIN 35 rail mount

- Communication activity LED indication on both port- Fast Transition Time

- PC free setup

- 4 Digital inputs

- 4 Digital outputs

- 1 Device ready output

- IEC 60870-5-103 communication protocol

- LED Signalization of input and output statuses


Overview:

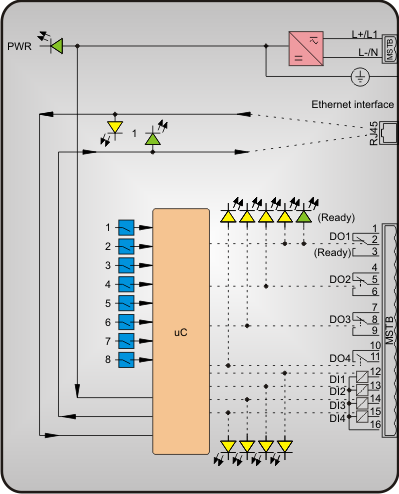

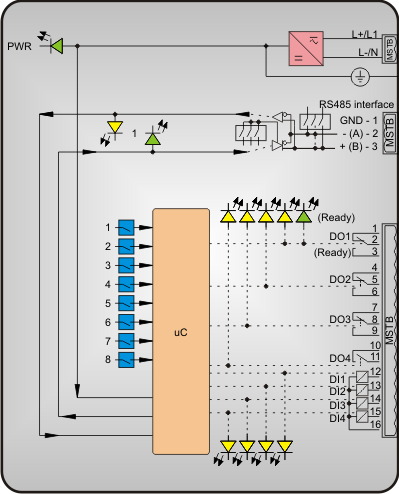

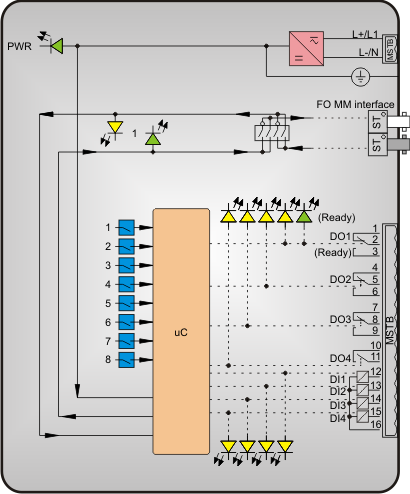

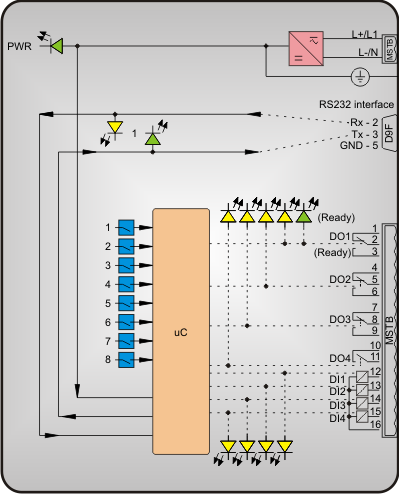

Schematic:

Model types:
Port 1
DC 110 V-250 V, AC 230 V
DC 48 V-60 V, AC 48 V
RS232
SAU 100/HI.232.NON.IO1 (DI: DC 110 V) SAU 100/MD.232.NON.IO4 (DI: DC 48 V)
SAU 100/HI.232.NON.IO2 (DI: DC 220 V)
RS485
SAU 100/HI.485.NON.IO1 (DI: DC 110 V) SAU 100/MD.485.NON.IO4 (DI: DC 48 V)
SAU 100/HI.485.NON.IO2 (DI: DC 220 V)
Multimode Fiber Optic
SAU 100/HI.FOT.NON.IO1 (DI: DC 110 V) SAU 100/MD.FOT.NON.IO4 (DI: DC 48 V)
SAU 100/HI.FOT.NON.IO2 (DI: DC 220 V)
10/100Base-Tx
SAU 100/HI.ETH.NON.IO1 (DI: DC 110 V) SAU 100/MD.ETH.NON.IO4 (DI: DC 48 V)
SAU 100/HI.ETH.NON.IO2 (DI: DC 220 V)
